2MP Thermal Imaging Camera with high-definition video port built-in EMMC storage (T30 PRO)

2021 10/27

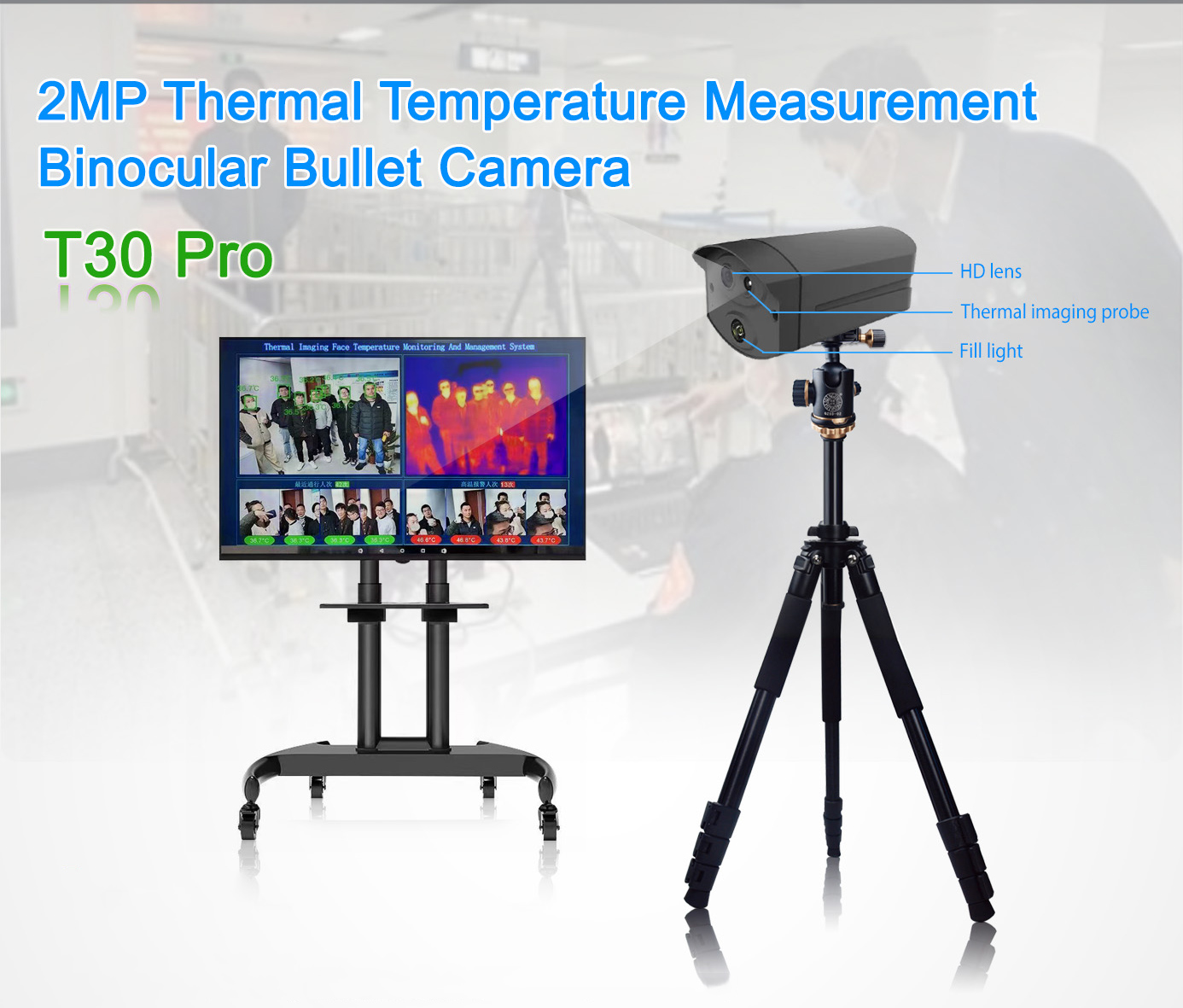

2MP Thermal temperature measurement binocular bullet camera, based on Hisilicon embedded coding platform, integrated thermal imaging and visible light image sensors for temperature measurement. The maximum output resolution of the visible light sensor is 1920x1080@30fps, High accuracy. This product can support the advanced h. 265 Main profile encoding technology, achieve lower bit rate, HD picture quality. Support ONVIF.GB/T28181 etc. Network protocol, Standard SDK is available for quick integration.

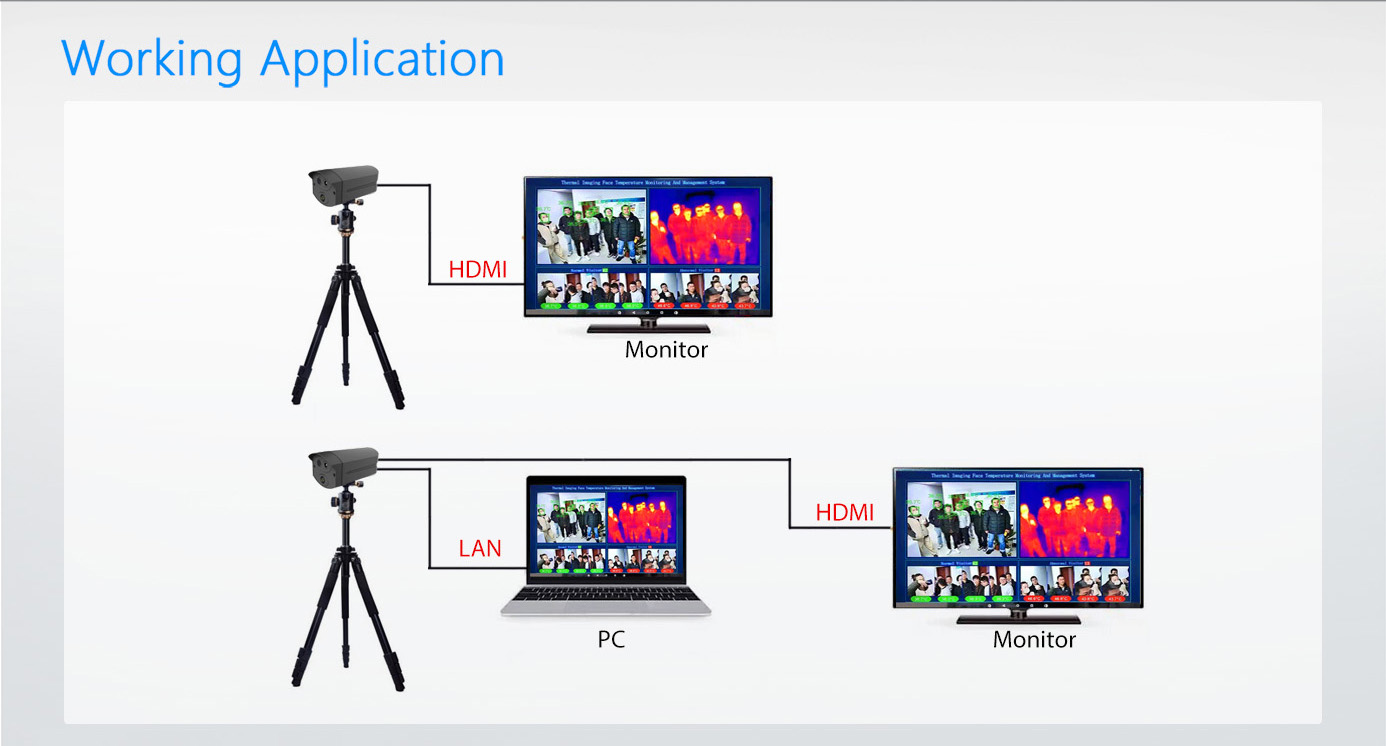

It can be widely used in close range scene monitoring, Such as body temperature measurement, indoor fire prevention, warehouse fire prevention, charging pile temperature monitoring and other fields.


Features

●Thermal imaging detector pixels 256x192

●1/2.8" 2.0M CMOS Sensor

●Maximum resolution 1920x1080@30fps

● Embedded deep learning algorithms, Support face snapshot function, can detect and capture 20 to 30 faces at the same time

●Support face tracking and scoring, More frames to identify, Automatic filtering output optimal face, and reduce repetitive capture

●Support H.265+ / H.265/ H.264 + MJPEG dual stream, three stream

●Support ONVIF, GB/T28181 etc. network protocol

Camera -01T30 (2)T30 (3)
